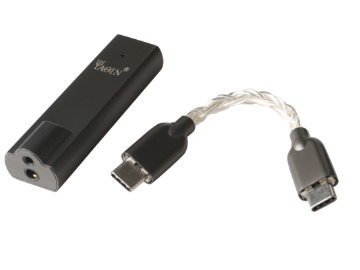

DAC-X8

Working voltage (VBUS): 4.7~5.3V
Working current: static 143mA,
playback 200mA@Fs=768KHz,
20mW @RL=32Ω, unbalanced
Output level (0dB): 2Vrms @RL=600Ω, unbalanced;
4Vrms @RL=600Ω, balanced
Frequency response flatness (20Hz~20KHz), unbalanced: +0.05, -0.3dB
Noise level (no weight): 4.5uV, unbalanced; 8.1uV, balanced
Signal-to-noise ratio (SNR): 117dBA
Total harmonic distortion + noise (THD+N): -103dB @RL=600Ω, 0dB; -105dB @RL=32Ω, 100mW; unbalanced
-110dB @RL=600Ω, 0dB; -105dB @RL=32Ω, 100mW; balanced
Maximum output power: 100mW@ RL=32Ω, unbalanced; 180mW@ RL=32Ω, balanced; 50mW@ RL=300Ω, balanced
  yaqin@fsyaqin.com

Product features

微信图片_20210425135347

①USB2.0 high speed compatible                              ②Support UAC2.0                                                       ③USB interface power supply                                      ④Supports hard decoding of PCM and DSD audio played via USB                                                                  ⑤Support PCM specifications: 16/24/32bit, 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768KHz               ⑥Support DSD specification: DSD64/128/256/DSD512
微信图片_20210425141223

Support modes for DSD audio output via USB: DoP (DSD64/128/256), Native (DSD64/128/256/512)          ① Support Windows, Mac OS, Android[1], iOS[2]         [1] Android devices are required to support OTG and UAC. To                                                                          [2] Need to use Apple camera components for connection                                                                            ②With 3.5mm unbalanced output and 2.5mm balanced output dual headphone jack
