SD-38A

Technical Indicators
Audio Output Signal:Balance 4 (±0.5dB)
  Signal  2V(±0.5dB)Frequency Response:10Hz-35kH(±0.5dB)
SNR:≥110dB(A)
Distortion:≤0.005%
Dynamic Range:≥117dB
Anlog Output:balance one group,unbalancone group
Digital Output:coaxial one group
Tube:6H8C×2 6Z4P×2(Rectifier tube)
  yaqin@fsyaqin.com

Product features

微信图片_20210425135347
PCM1794 DAC Decoding chip
Using the DAC decoder chip of American BB company PCM1794, high fidelity, clear details, wide sound field, stable performance, bring you the enjoyment of hearing
微信图片_20210425141223

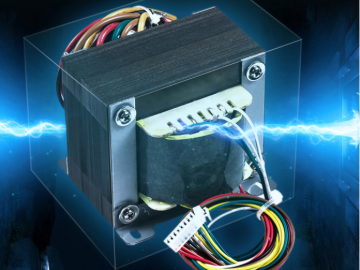

Transformer
The power diverter is made of wellhead frequency silicon steel sheet thickness 0.35mm, high-strength oxygen-free copper enameled wire and special winding technology, which can make this machine have small electromagnetic interference and strong driving force and transparent sound quality. High power and sufficient energy
eaf81a4c510fd9f92a8327ff2f2dd42a2934a494

Details display

MS-500B
SD-38A
MS-500B
SD-38A
MS-500B
SD-38A

Test report

3C certification
3C certification
CE certificate
CE certificate
650B glory
Get good title
2012 hifi audio Awards
2012 hifi audio Awards

Our Core Advantages

Industry experience

Industry experience

01
27 years of experience in the production of tube power amplifiers ;OEM for many well-known brands, products are sold to more than 40 places at home and abroad
Quality Assurance

Quality Assurance

02
Passed 3C certification, CE certification, CB certification, in line with HIFI standards,
and won a number of HIFI audio awards
Prompt Delivery

Prompt Delivery

03
The company has a 5000㎡ production workshop, 7 automated production
 lines, which are equipped with metal casing stamping processing, CNC numerical control processing, transformer production and product assembly workshops, etc.
After-sales Service

After-sales Service

04
Implement "three guarantees" after-sales service, free guidance for use
One year warranty for switchboard and ten years for transformer

Hot product recommendation

MS-88

MS-88

Maximum output power: 50W*2 (8 ohms, ultra linear, 1KHz, THD=5%) 25W*2 (8 ohms, tri-pole, 1KHz, THD=5%) Total harmonic distortion: ≤1% (at 35W output, 1KHz) Signal-to-noise ratio: ≥91dB (A-weighted) Input sensitivity: ≤300mV Frequency response: 10Hz~75KHz (-2dB) Load impedance: 4Ω or 8Ω Maximum power consumption: 300W Electronic tube: KT-88*4, USSR 6H8C*2, ECC83/12AX7*1 Gross weight approx.: 27.5kg Net weight approx.: 24kg Dimensions: W400mm H219mm D363mm
MS-34B

MS-34B

Output Power:UL38W×2(8Ω) Frequency Response:10Hz--48KHz(-2dB) Distortion:≤1.0% SNR:≥90dB(A) Input Sensitivity:Intergrated:≤260mV Maximum Power Consumption:≤250W Tube:EL34 x 4  6N8P x 2 6N9P x 1   Gross Weight:about 25.5 kg Size:(W)400mm(D)355mm(H)220mm
MC-100B

MC-100B

Output Power: 25W+25W (8Ω) three-pole (TR) connection    50W+50W (8Ω) ultra-linear (UL)  connection Frequency response: 5Hz-80KHz (-2dB)  Distortion: ≤0.5% (at 35W)  Signal to noise ratio: ≥91dB (A) Input sensitivity: combined type ≤ 0.25V Maximum power consumption: ≤370W  Electronic tube: KT88×4 6N8P×4 12AX7B×2  Gross weight: about 31 kg
  MS-84L

  MS-84L

Output power: 2x12W (4Ω-8Ω)  Harmonic distortion: ≤2%  Signal to noise ratio: ≥80db (A)  Frequency response: 6HZ-90KHz  Input sensitivity: 250mV  Input signal level: ≤300mv  Maximum power consumption: ≤90W  Tube: 6P14*4 12AX7B*2
MC-13S

MC-13S

Output power: 40W + 40W (8Ω)  Distortion: ≤0.9%(28W)  Frequency response: 10Hz -76KHz (-2dB)  Signal to noise ratio: ≥85dB (A weighting)  Power consumption: ≤220W  Sensitivity: ≤0.26V  Electronic tube: EL34×4 or 6CA7T×4 12AT7×4  Gross weight: 22Kg  Volume: length 470mm × width 315mm × height 175mm
MS-88

MS-88

Maximum output power: 50W*2 (8 ohms, ultra linear, 1KHz, THD=5%) 25W*2 (8 ohms, tri-pole, 1KHz, THD=5%) Total harmonic distortion: ≤1% (at 35W output, 1KHz) Signal-to-noise ratio: ≥91dB (A-weighted) Input sensitivity: ≤300mV Frequency response: 10Hz~75KHz (-2dB) Load impedance: 4Ω or 8Ω Maximum power consumption: 300W Electronic tube: KT-88*4, USSR 6H8C*2, ECC83/12AX7*1 Gross weight approx.: 27.5kg Net weight approx.: 24kg Dimensions: W400mm H219mm D363mm
LS-15M

LS-15M

Impedance: 8Ω Rated power: 30W Frequency Response: 50Hz-20KHz Sensitivity: 89dB/1M-2.83v Tweeter: 1 inch silk membrane magnetised tweeter Woofer: 5.25 inch composite cone Speaker Size:W180mmxH300mmxD270mm Speaker Weight:4.5KG/only
CS-201

CS-201

* The use of electronic tube pre*stage circuit with high and low tone adjustment, so that the machine sound sweet, treble slim, bass mellow and powerful. * This machine adopts foreign famous factory audio special fever level electrolytic and non*polarity Philips (MKP) capacitor and high*precision gold resistance manufacturing, the use of Japanese imports (ALPS) audio special potentiometer, with music background quiet, low noise, no sound coloring and durable advantages.
MS-94T

MS-94T

This machine is made of foreign famous audio factory's special ignition grade electrolysis, non*polar WIMA (MKP10) capacitor from German original factory and high precision resistive metal. It uses ALPS audio special motor potential device imported from Japan. It has the advantages of quiet music background, low noise, no sound and durable.
MS-100M

MS-100M

Speaker parameters Model: MS-100M Power: 150W Frequency response: 49Hz-20KHz Impedance: 8Ω Sensitivity: 89dB Speaker weight: 10KG/only Speaker size (single): length 310mm * width 240mm * height 400mm
SD-38A

SD-38A

Technical Indicators Audio Output Signal:Balance 4 (±0.5dB)   Signal  2V(±0.5dB)Frequency Response:10Hz-35kH(±0.5dB) SNR:≥110dB(A) Distortion:≤0.005% Dynamic Range:≥117dB Anlog Output:balance one group,unbalancone group Digital Output:coaxial one group Tube:6H8C×2 6Z4P×2(Rectifier tube)
MS-500B

MS-500B

Electric Performance Index Output Power:8.5W + 8.5W(4Ω or 8Ω) SNR:≥84dB(A) Distortion:(at 8Ω)≤1.5%(1KHz) Frequency Response:5Hz-40KHz(-2dB) Tube:300B-N × 2 6N8P × 2  12AU7/ECC82 × 2  5Z3P × 1 Size:(W)590mm(D)470mm(H)380mm Gross Weight:about 28 kg
MS-90B

MS-90B

Output Power:UL55W×2(8Ω)   TL28W×2(8Ω) Frequency Response:5Hz--70KHz(-2dB) Distortion:≤0.8% SNR:≥90dB(A) Input Sensitivity:Intergrated:≤250mV  Maximum Power Consumption:≤390VA Tube:KT88-EH x 4  6N8P  or 6SN7 x 4     12AX7 /ECC83x 2
MS-77T

MS-77T

Output power: 40W + 40W (8Ω) Distortion: ≤0.5% (1KHz) Frequency response: 5Hz -68kHz Signal-to-noise ratio: ≥88dB (A weighting) Input sensitivity: ≤0.23V (1KHz) Electronic tube: 7027B × 4 6J1 × 8 Load impedance: 4Ω-8Ω Power consumption: about 250W
